Protecting Elbphilharmonie from sound transmissions

In 2017 Hamburg received a new landmark.

The Elbphilharmonie is located south of the Speicherstadt, the
historic warehouse district in the Port of Hamburg, Germany. The

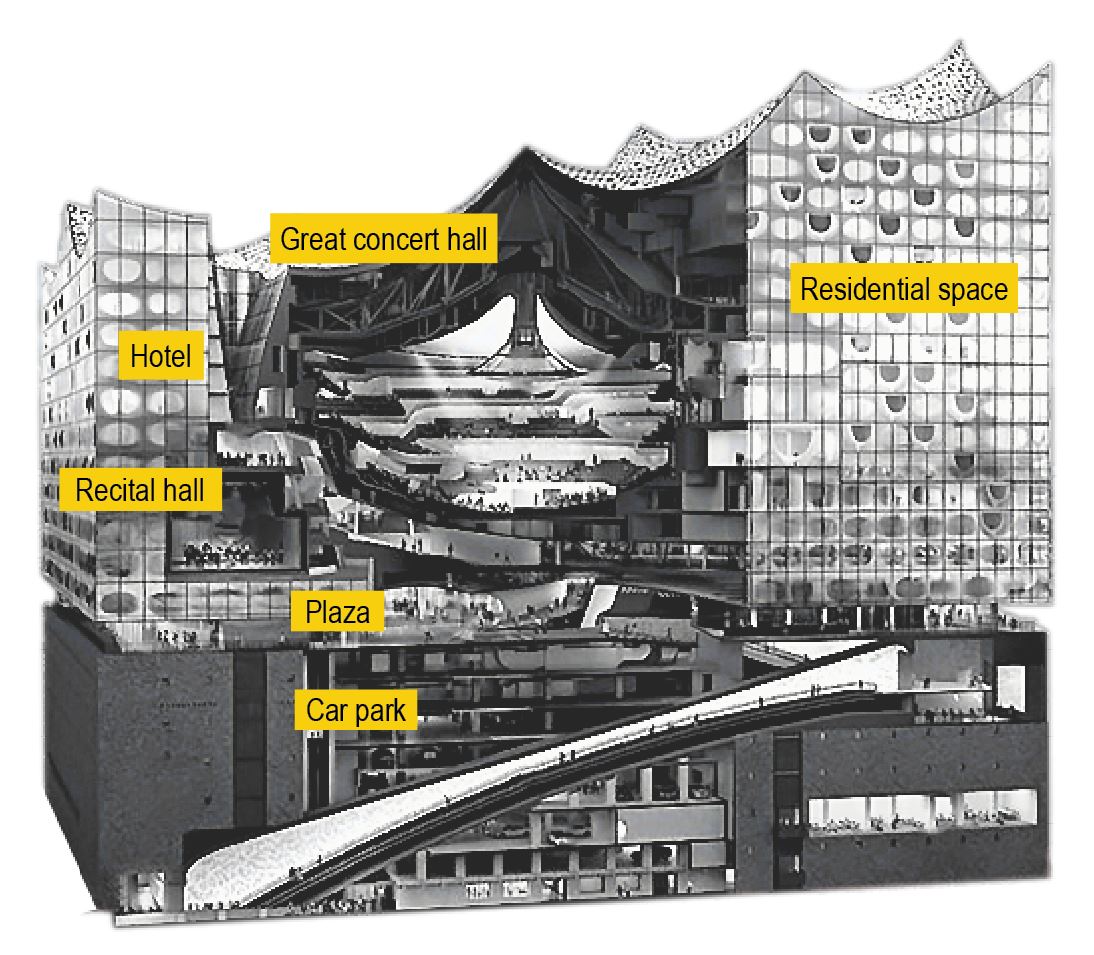

Elbphilharmonie was built on an existing structure of a brick quay warehouse and claims to be a „cultural monument for everyone“. The building consists of different areas, concert halls and public areas as well as hotel and residential uses.

Challenge

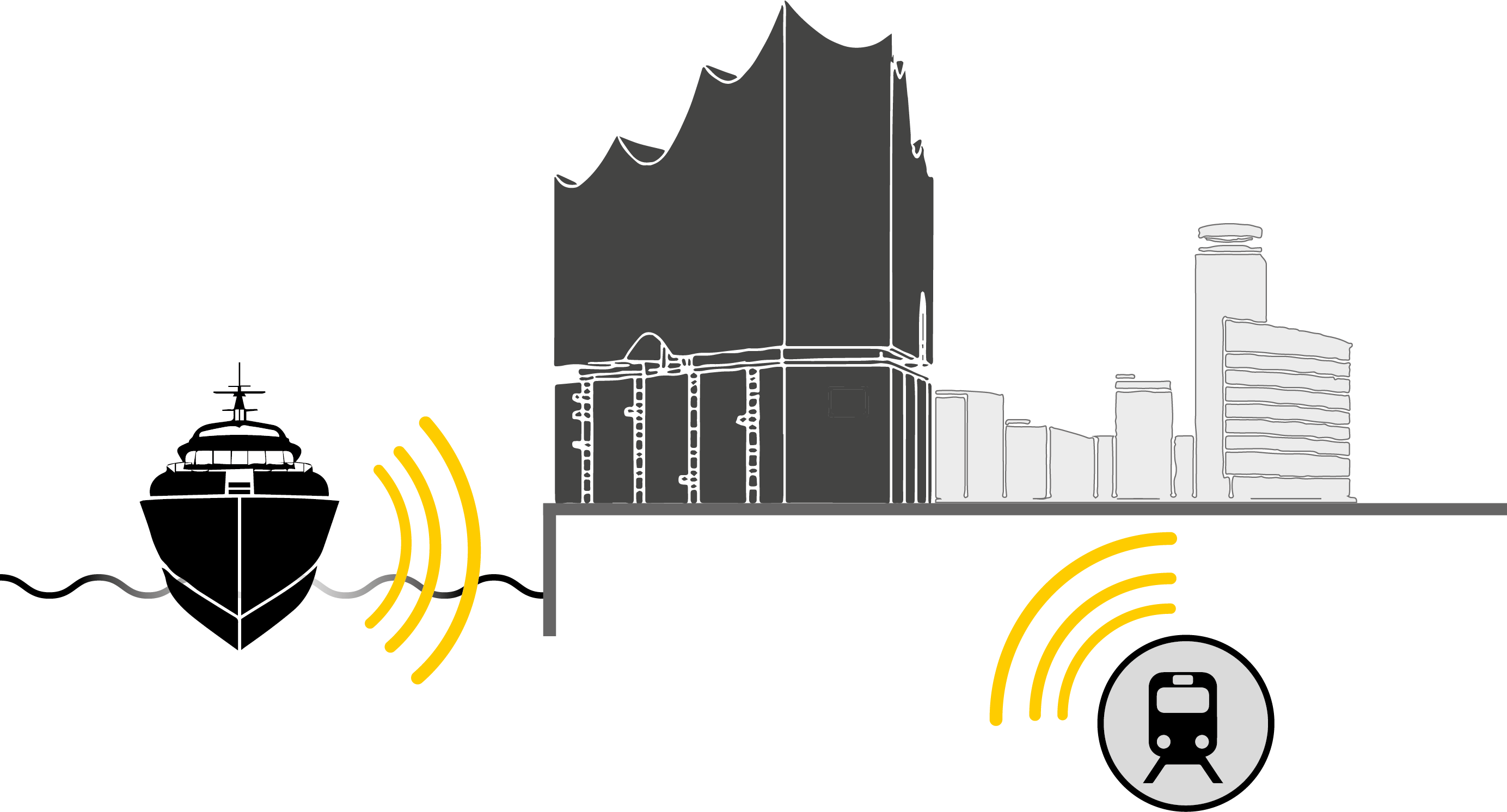

The Great Concert Hall, the heart of the Elbphilharmonie, offers a soundscape that inspires. The sound architecture comes from the world-renowned acoustic designer Yasuhisa Toyota. Classical music has to sound perfect – not only does the shape of the hall play a decisive role here, but also noise coming in from outside has to be eliminated. Low-frequency sound from ship‘s horns and impact noise from the environment could penetrate the hall as structure-borne noise.



In addition, the building around the concert halls has to be protected from the music to ensure a quiet atmosphere in the surrounding hotel and residential areas during concerts.

Solution

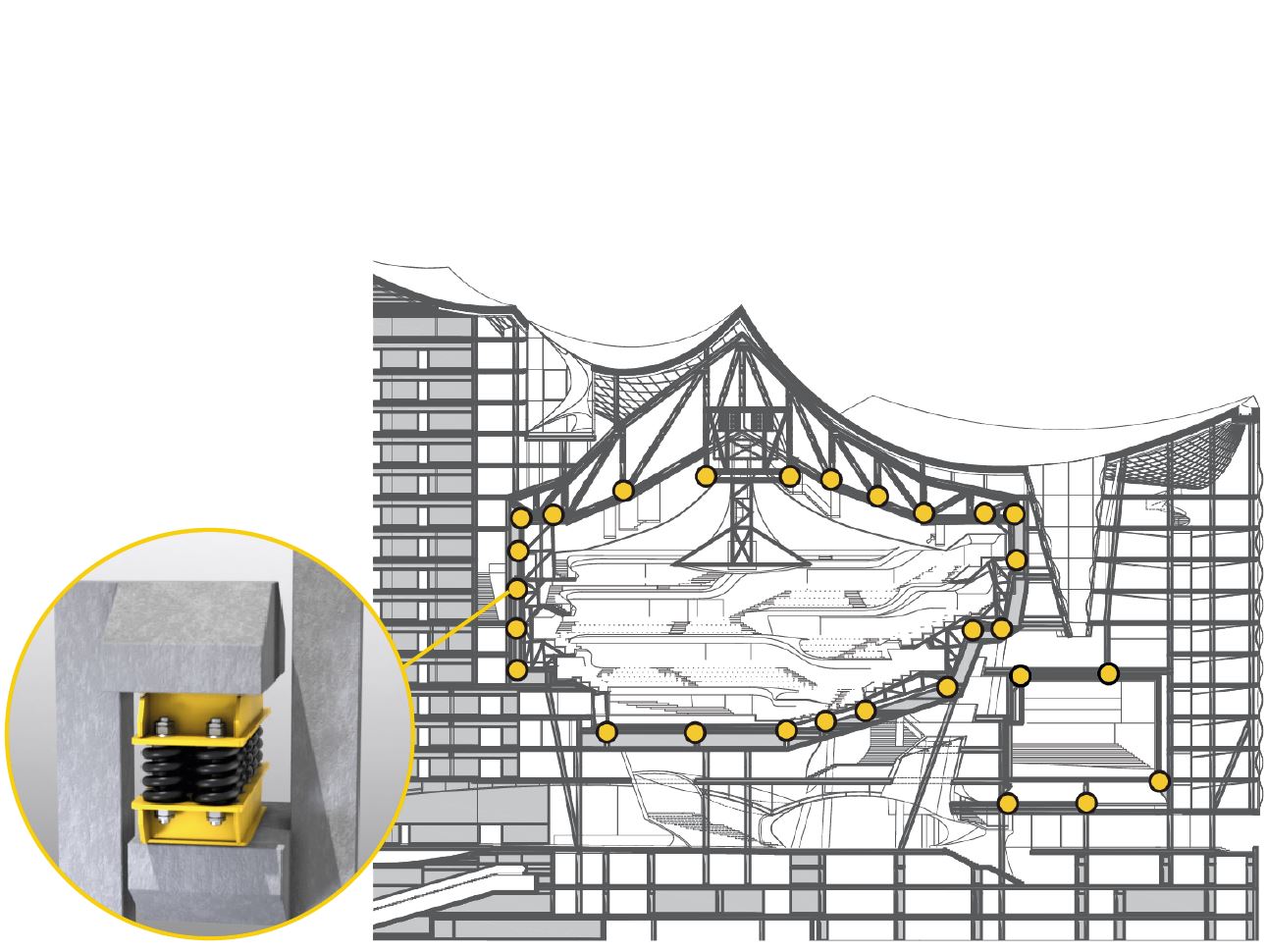

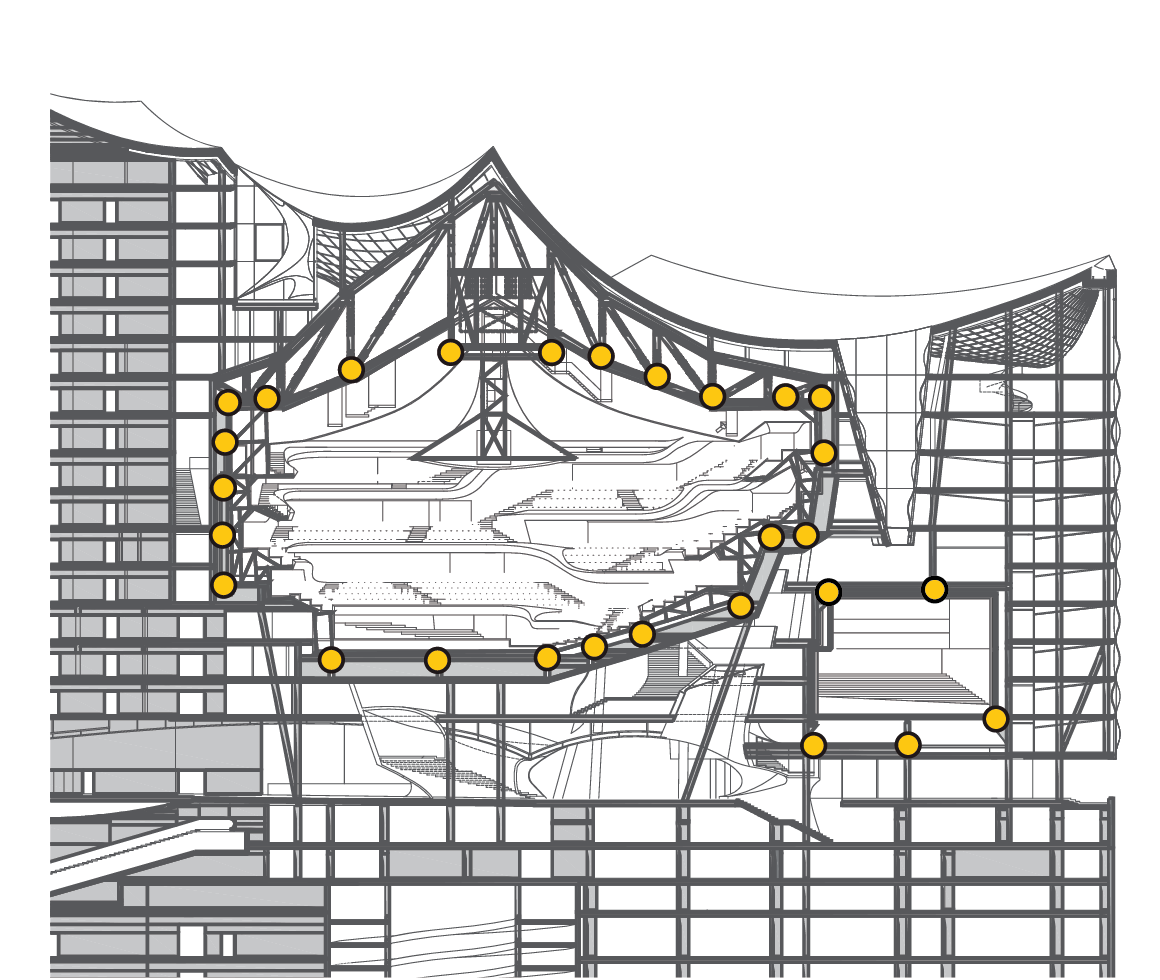

The two largest concert halls were designed as independent structures within the Elbphilharmonie. The halls are connected to the main building via helical steel springs, which act as a vibration barrier and prevent the transmission of structure-borne noise. The design of an isolated room in a larger structure is also referred to as a box-in-box solution and serves to decouple structure-borne noise for both the sources and the receivers. This technology is therefore ideal for separating quiet areas with high acoustic requirements from noisy areas with urban use.

Technical Facts:

Structure: Box-in-box construction

Vibration Source: Structure-borne noise from the environment and loud music in the concert halls

Design load: Great concert hall – 90,000 kN (2150 seats). Recital Hall – 20,000 kN (550 seats)

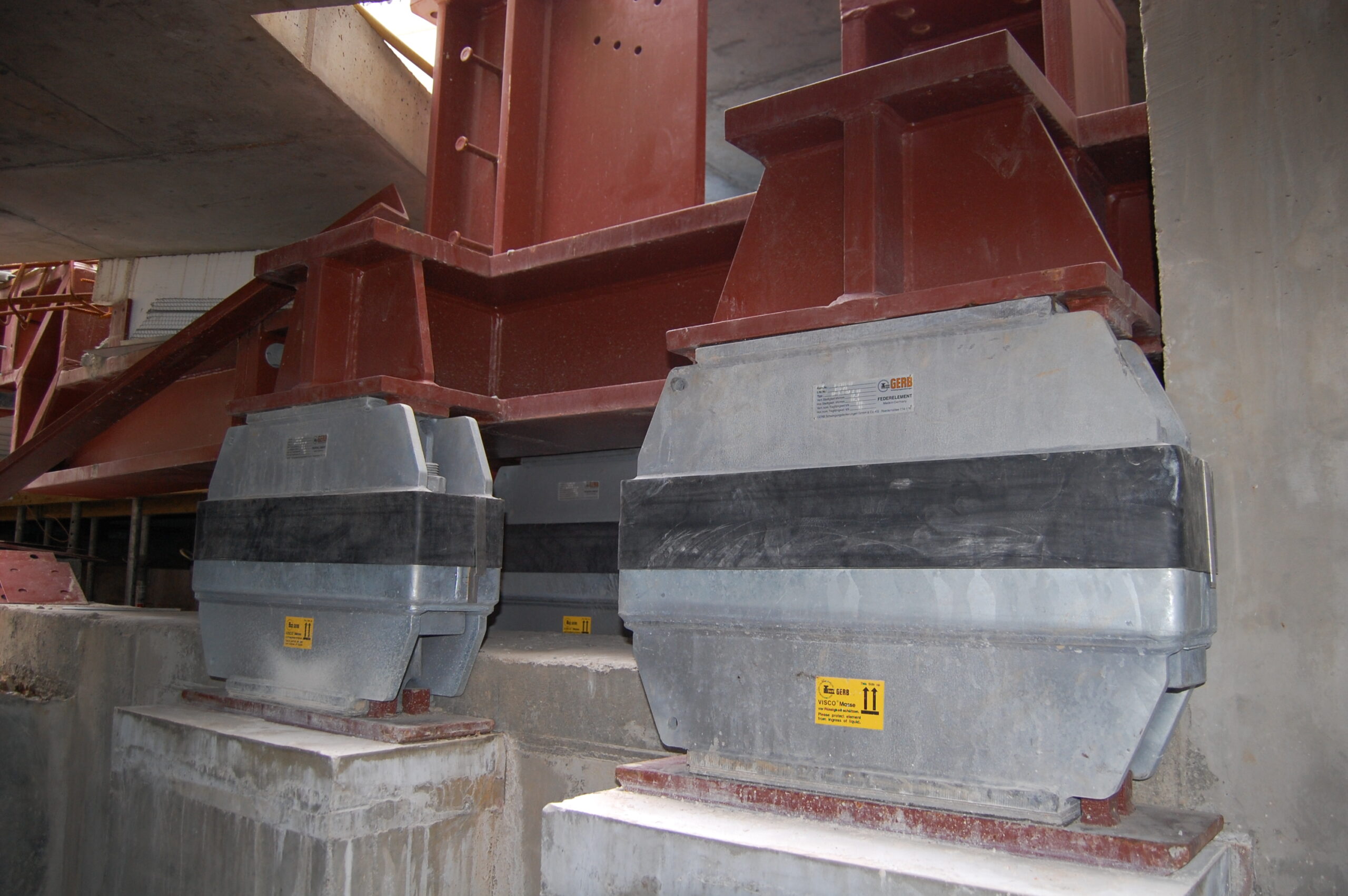

Base Isolation: Pre-stressable GERB GP-spring elements

Support frequency: Great hall – 4.5 Hz. Recital hall: 3.5 Hz

Box-in-box Elbphilharmonie

Implementation

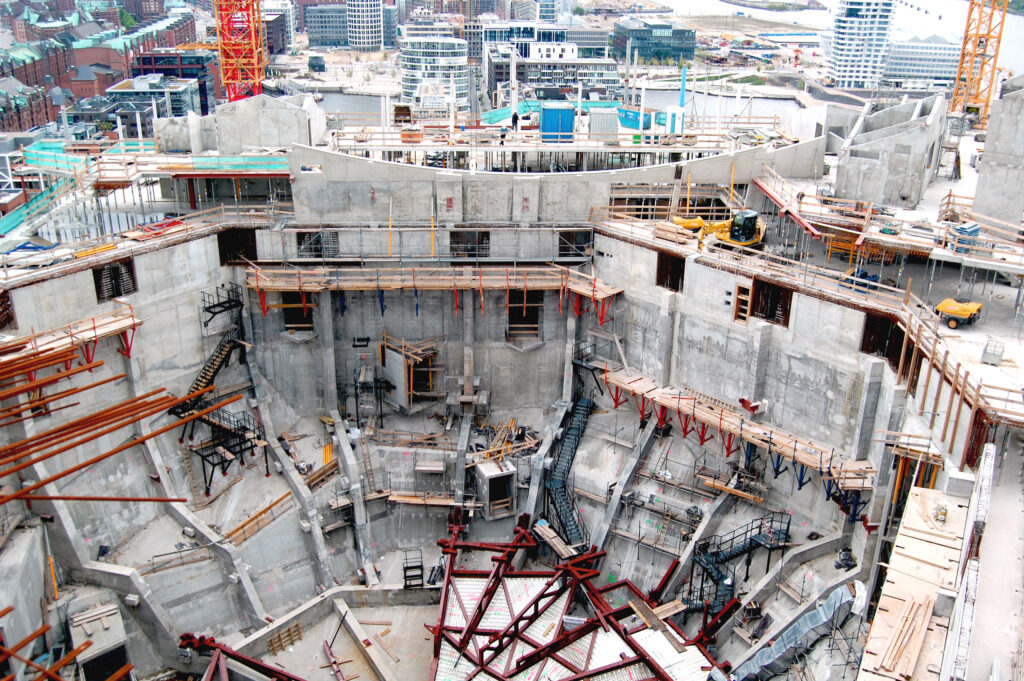

The Recital hall and the Great Concert hall float in the main building of the Elbphilharmonie and are completely acoustically decoupled – no
structure-borne noise penetrates or escapes via the helical steel spring elements. The challenge of combining acoustically demanding concert
halls with urban uses and public areas in one building was successfully designed and implemented. Today, world-famous artists and orchestras
perform in the Elbphilharmonie, one of the best concert halls in the world.
