Protection of Concert Halls from Disturbing Vibrations
Enhancing Acoustic Excellence: The Role of GERB Spring Elements in Concert Hall Isolation
Our expertise in isolating entire buildings, as well as specific building parts, such as concert halls within larger structures, ensures the delivery of exceptional acoustic experiences.
The primary objective of vibration isolation is twofold: to protect concert halls from external interferences and to shield surrounding environments, such as hotels or premium living apartments within the same building. With our advanced vibration isolation solutions, mixed-use developments can seamlessly integrate concert halls without compromising on acoustic excellence.
By integrating GERB spring elements, the structure to be protected is decoupled from its surroundings, shielding it from dynamic forces.

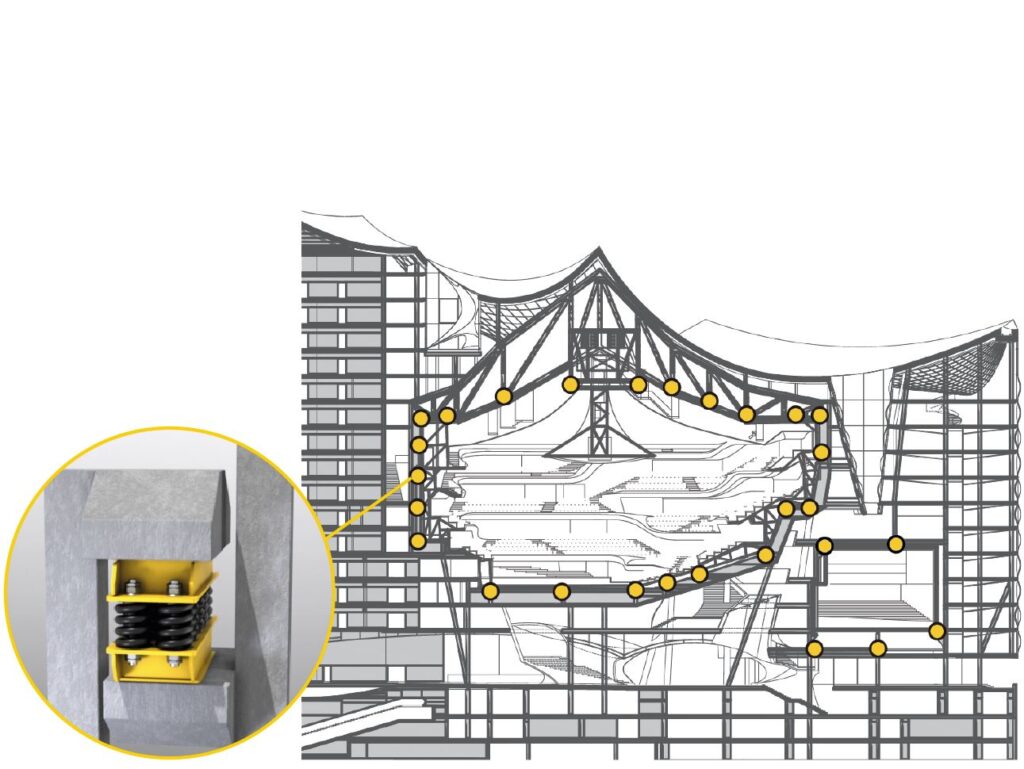

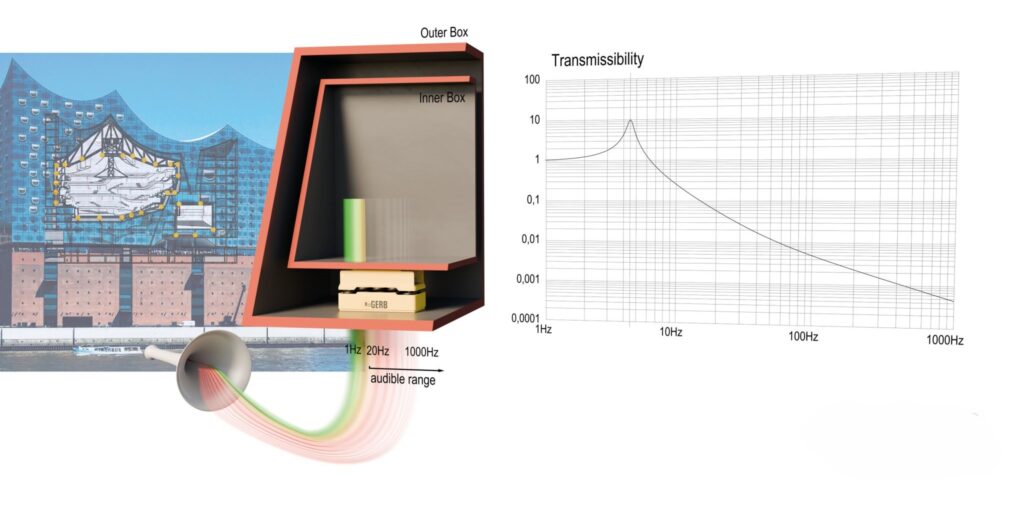

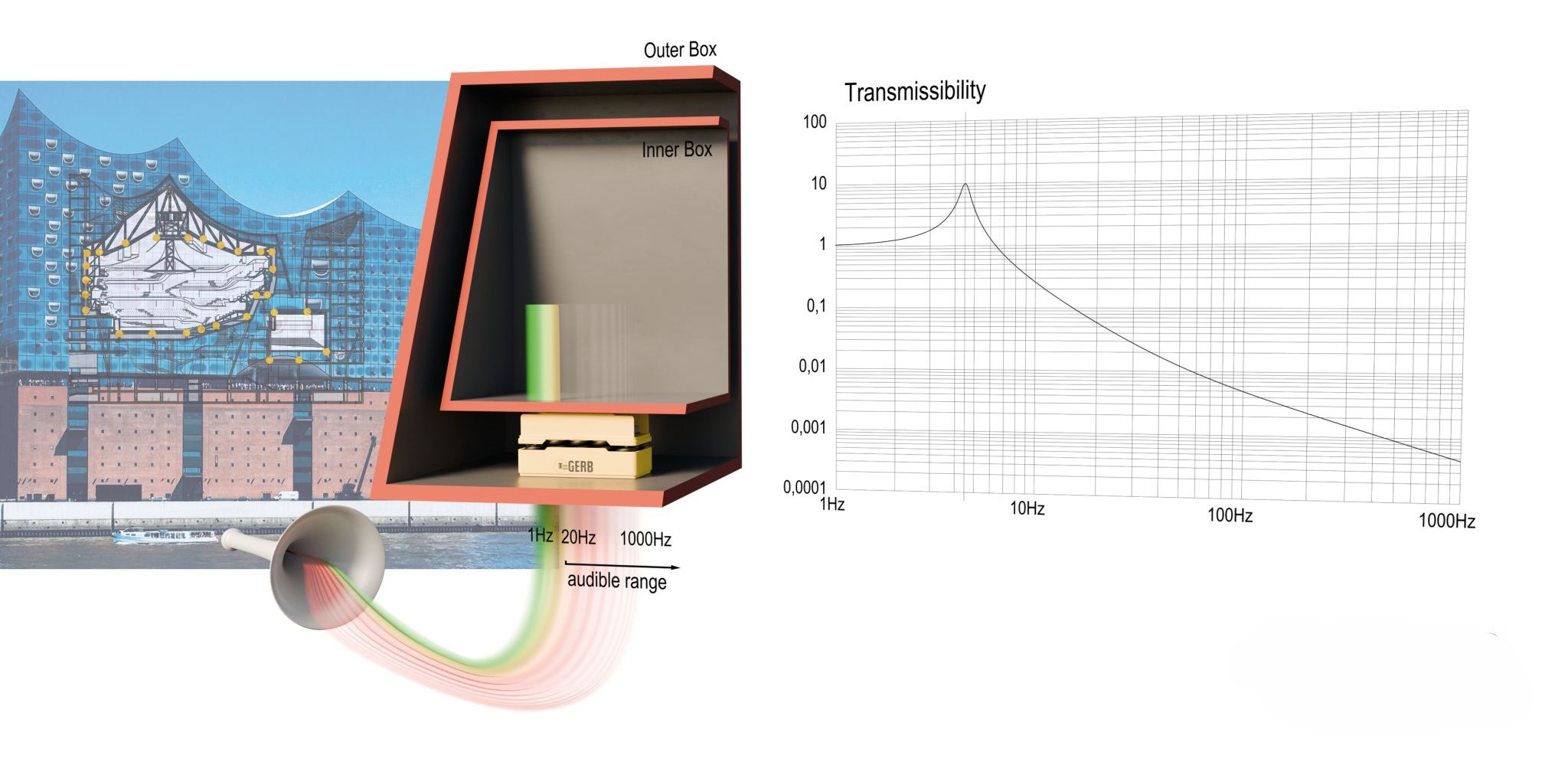

Box-in-Box Isolation
One of our key solutions is the “box-in-box” isolation technique. This involves decoupling the concert hall from the surrounding building structure, effectively creating an isolated acoustic haven within the larger complex. By employing our precision-engineered spring elements, we prevent external vibrations from infiltrating the concert hall, ensuring that performances are free from disruptive vibrations.
In the design of a concert hall, the goal is to prevent vibrations from being transmitted into the surrounding structure. This particularly applies to vibrations in the audible frequency range, which could significantly compromise the sound quality of a concert hall. Humans typically perceive sounds in the range of 20 Hz up to 20 kHz, including structural noise caused by vibrating components. In the case of the Elbphilharmonie, it was predicted that ship horns in the maritime environment could lead to increased structural noise inside the concert halls. An auditorium that needs protection from external sources can be structurally implemented as a box-in-box installation. In this design, an inner shell is decoupled from an outer shell through elastic spring elements, with the transmissibility defining the spectral transfer factor of vibrations from the outer shell to the inner shell.
Read here the full article about GERB Box-in-Box solution for Elbphilharmonie Hamburg.
Full Building Isolation
In addition to isolating building parts, we also specialize in the isolation of entire concert buildings. This approach is particularly crucial in urban environments where concert halls must be protected from vibrations caused by underground metros or heavy adjacent traffic.
GERB’s portfolio boasts numerous successful projects where our vibration control solutions have set new standards in acoustic performance. From world-renowned concert halls to multifaceted cultural centers, our isolation techniques have been instrumental in creating spaces where the finest auditory details can be enjoyed without interference.
Case Studies: Proven Excellence in Acoustic Isolation

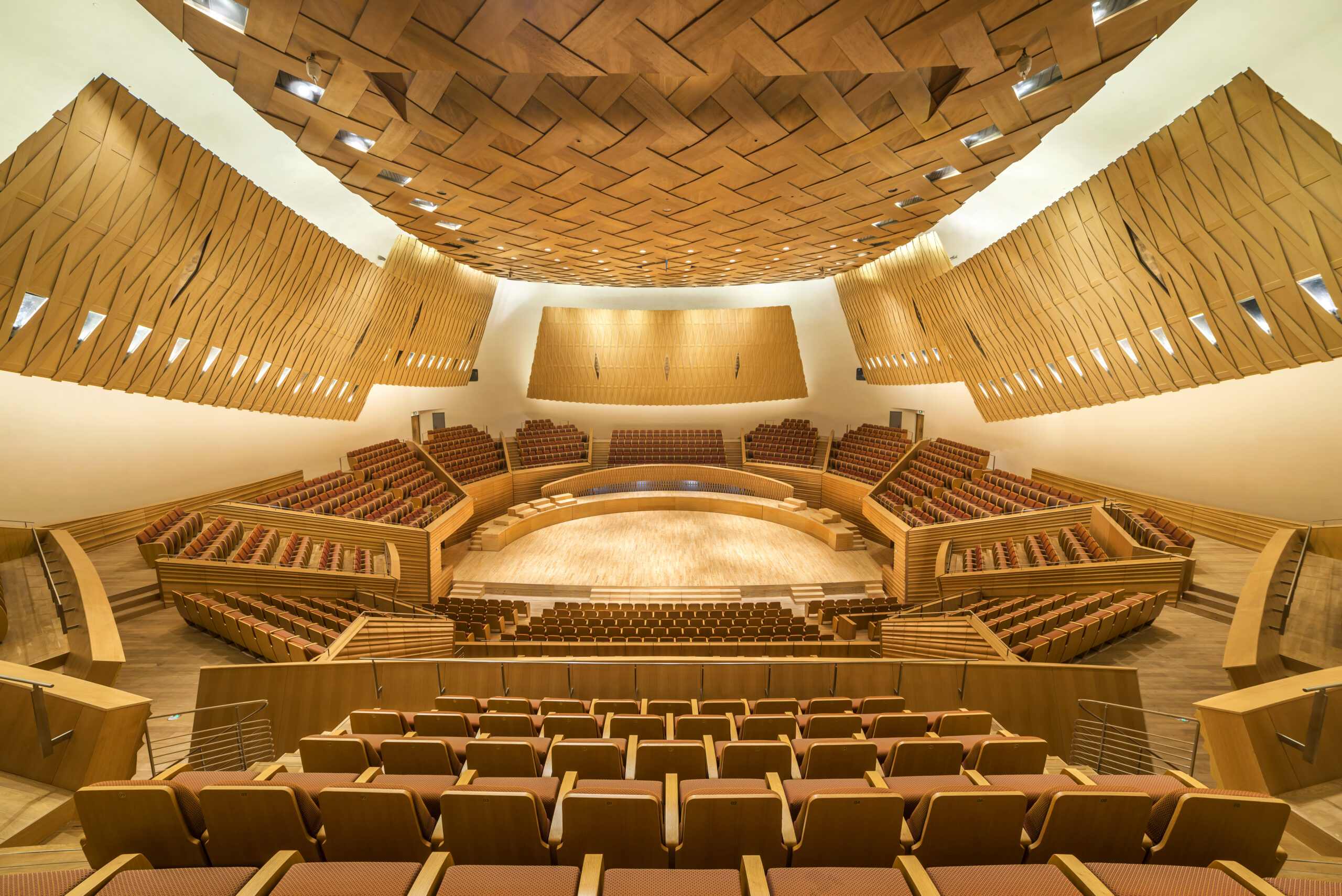

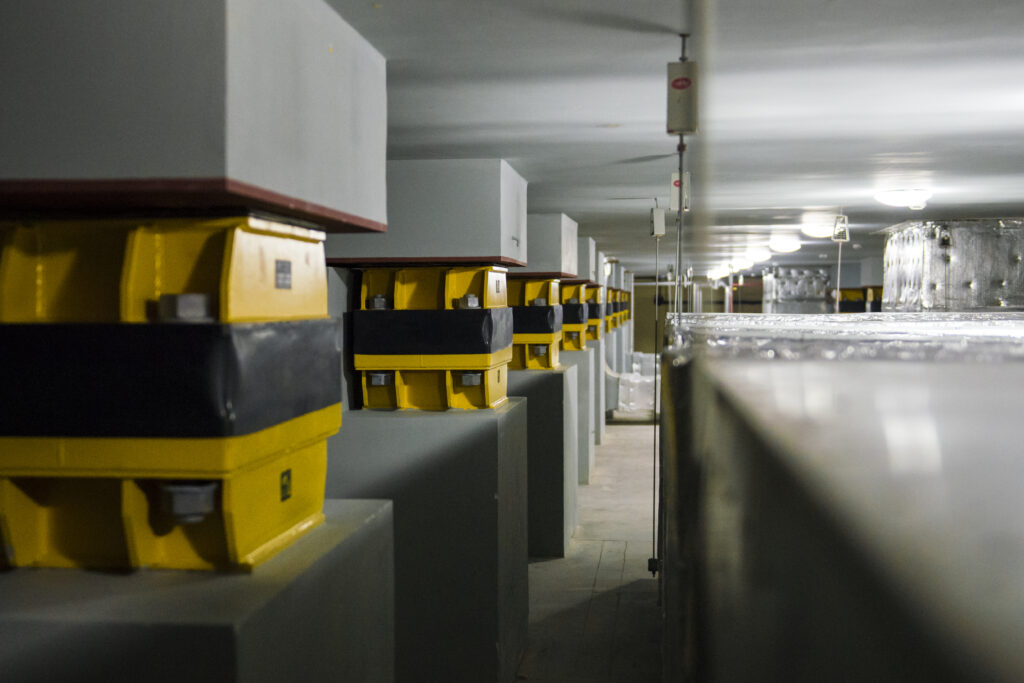

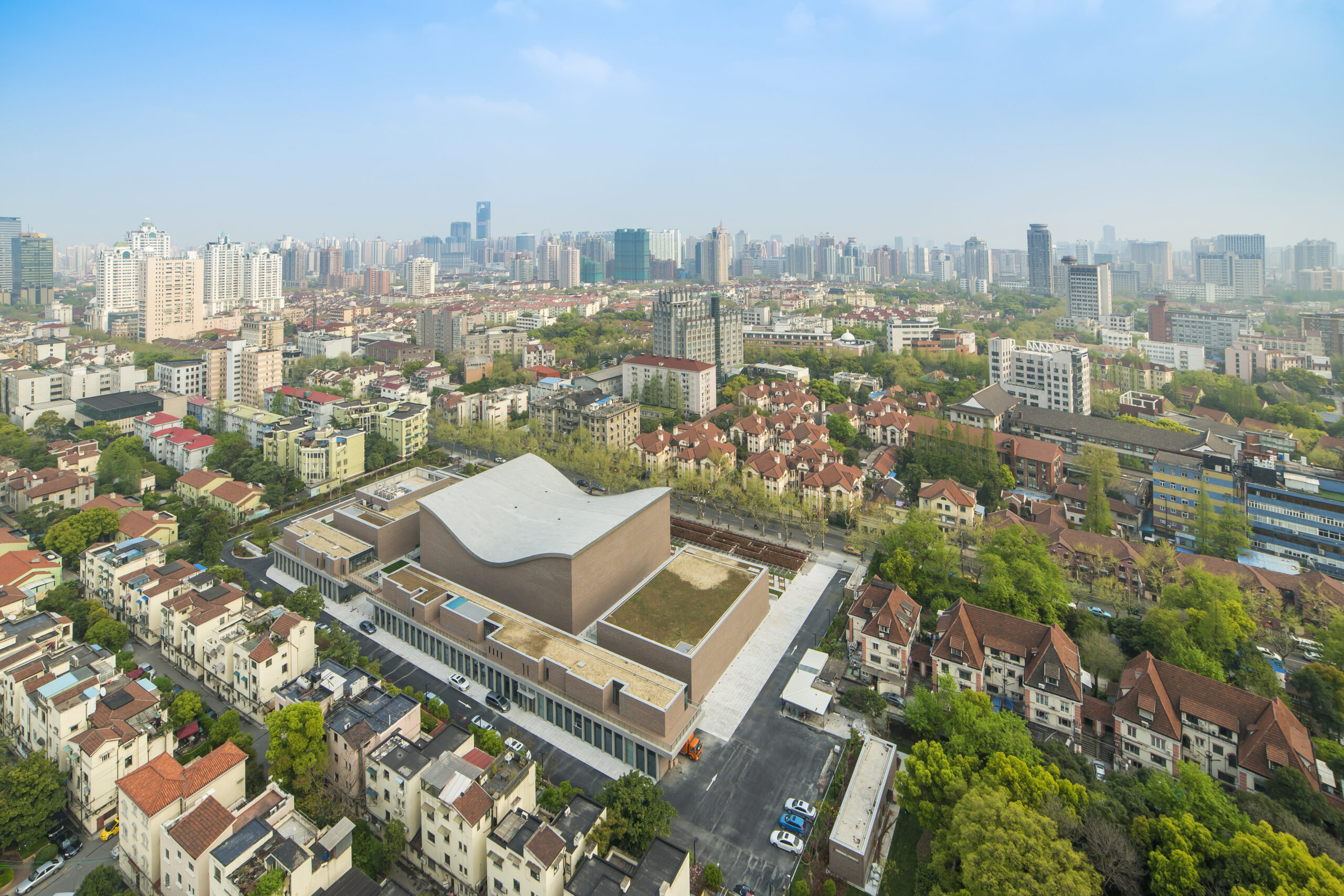

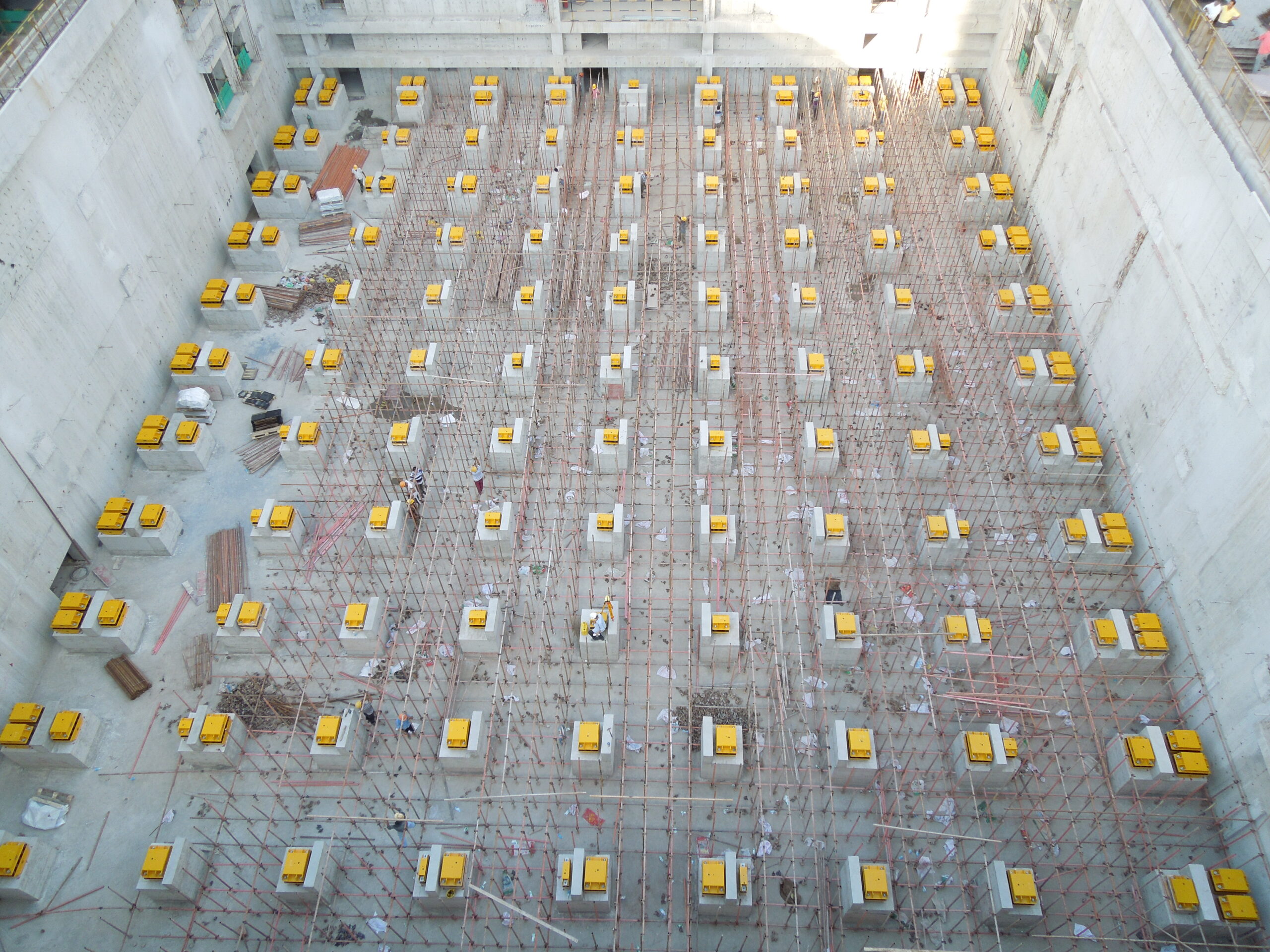

Shanghai Symphony Orchestra
Base isolation with 300 GP elements
Vibration source: metro

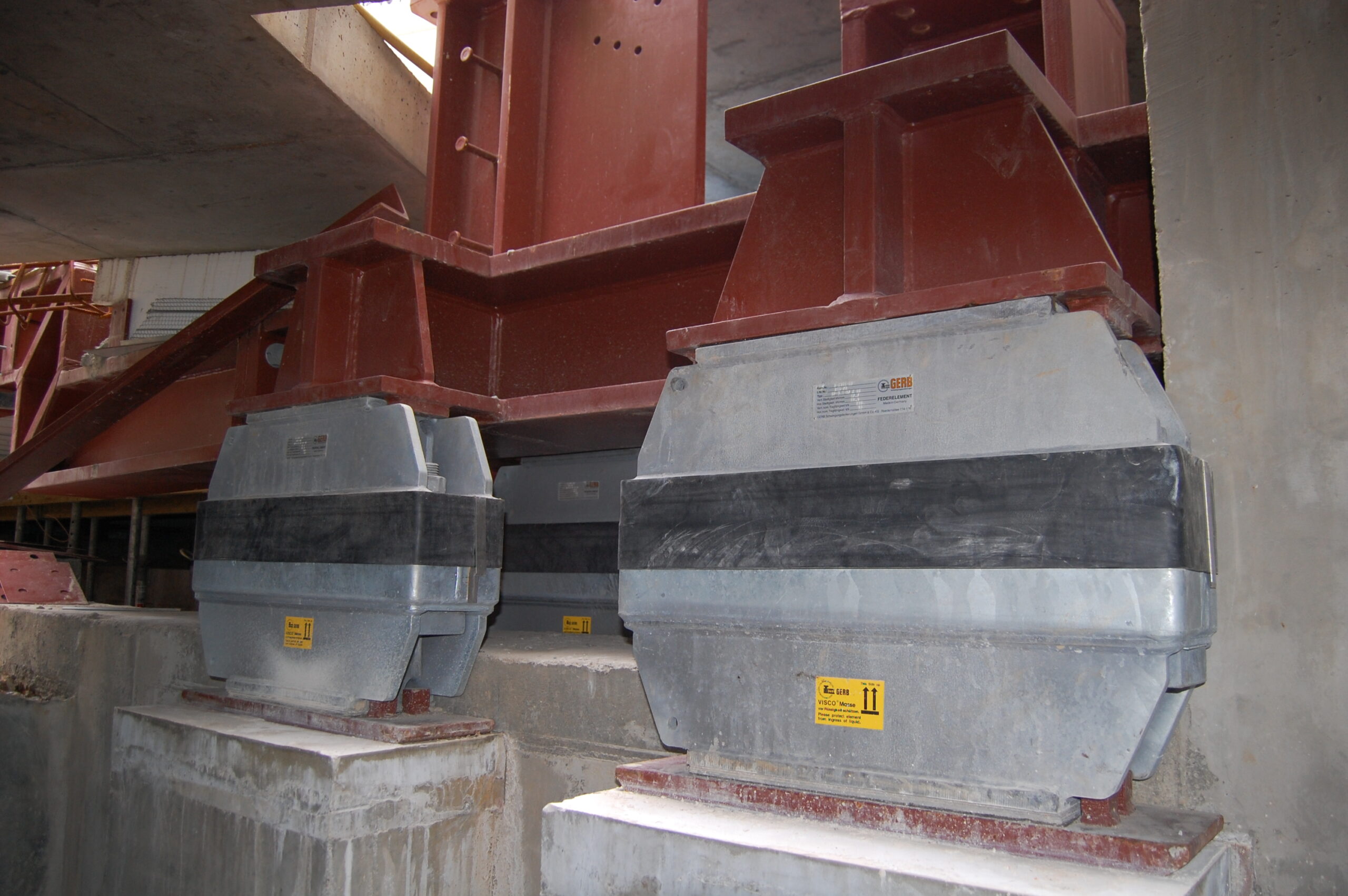

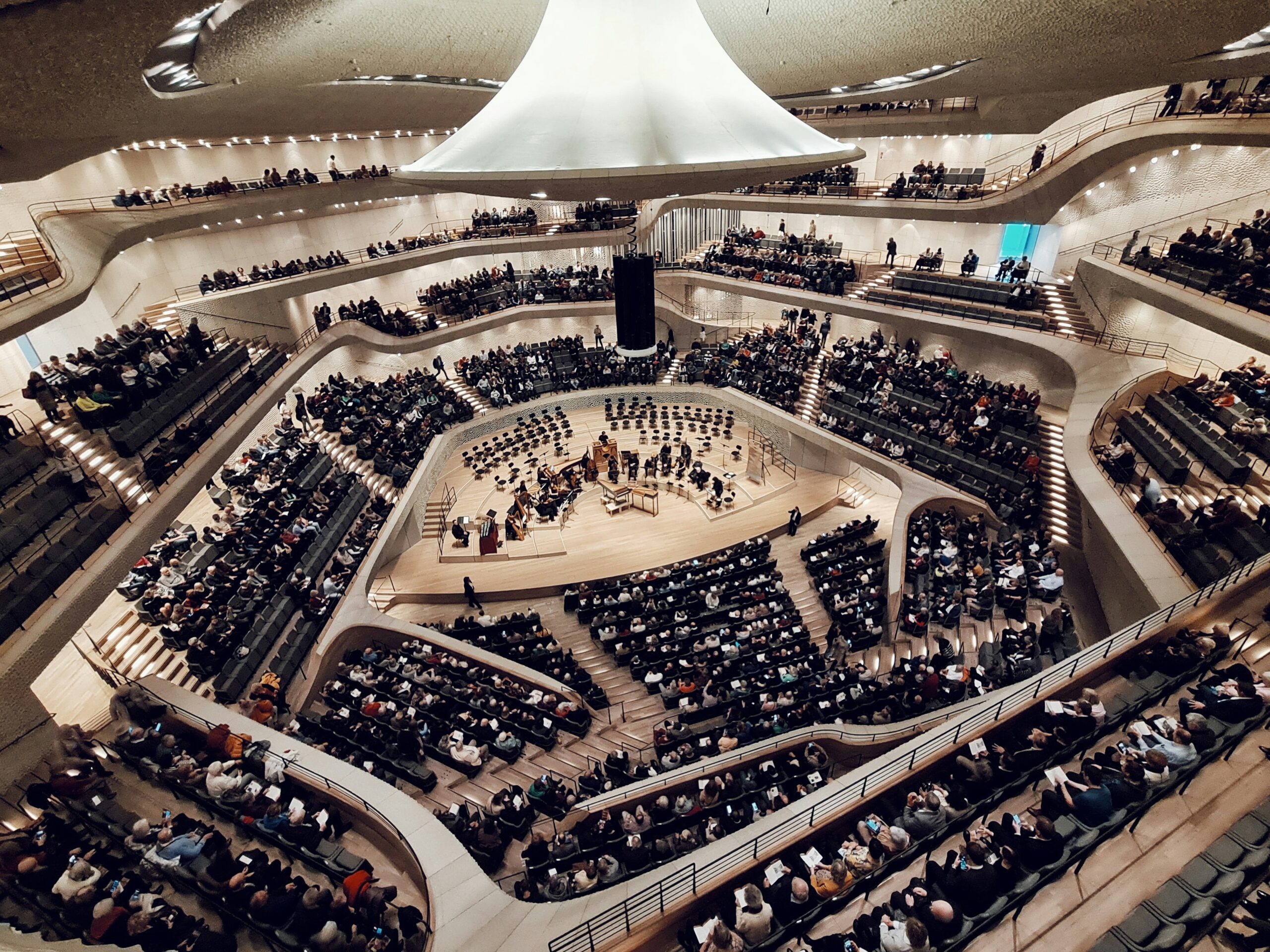

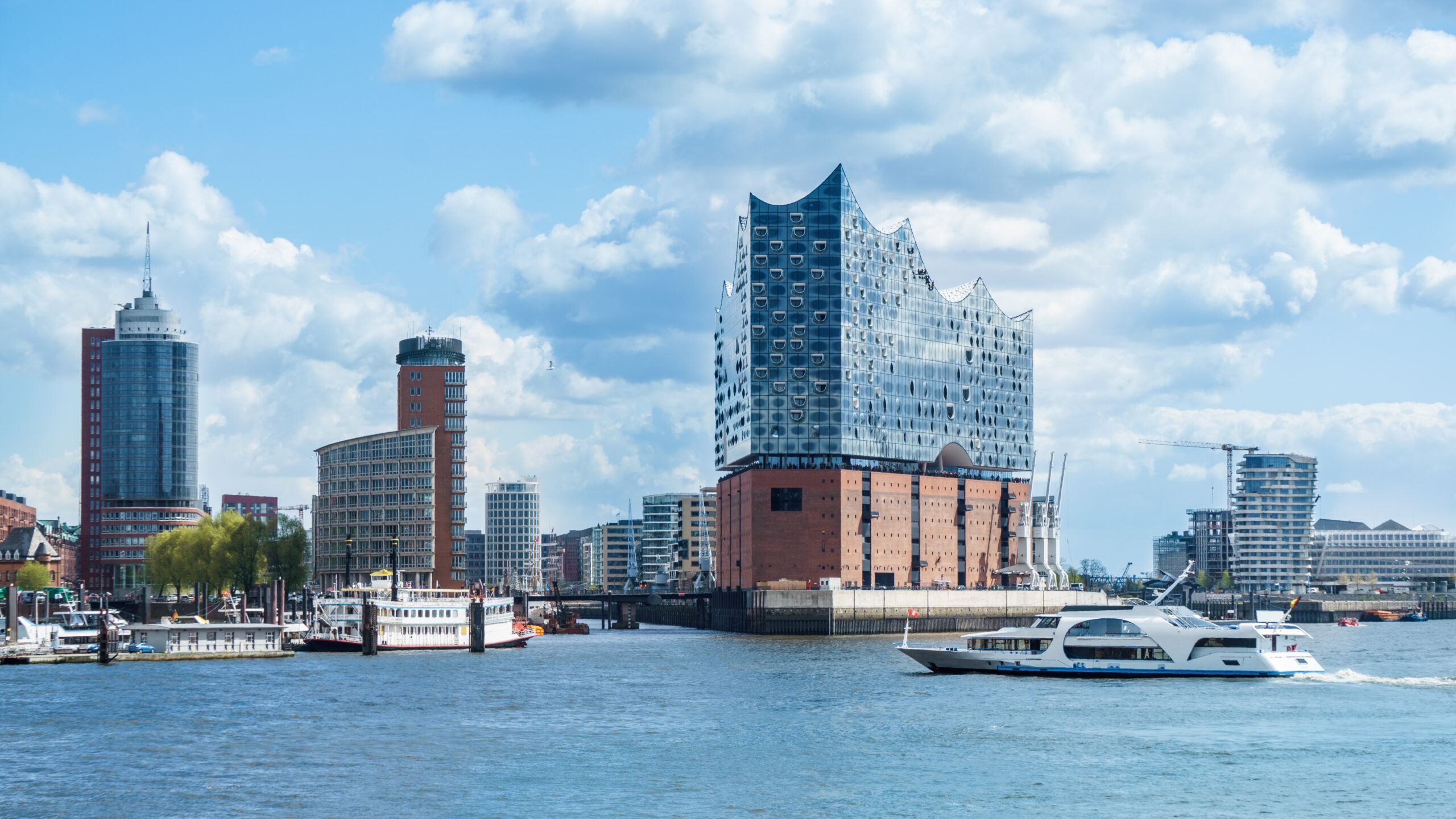

Elbphilharmonie Hamburg, Germany
Box-in-Box isolation with 418 pre-stressable GP spring elements (hot-dip galvanised)
Vibration source: Structure-borne noise from the environment
Design load: Great concert hall: 90,000 kN
Recital hall: 20,000 kN
Support frequency: Great Concert Hall: 4.5 Hz
Recital Hall: 3.5 Hz

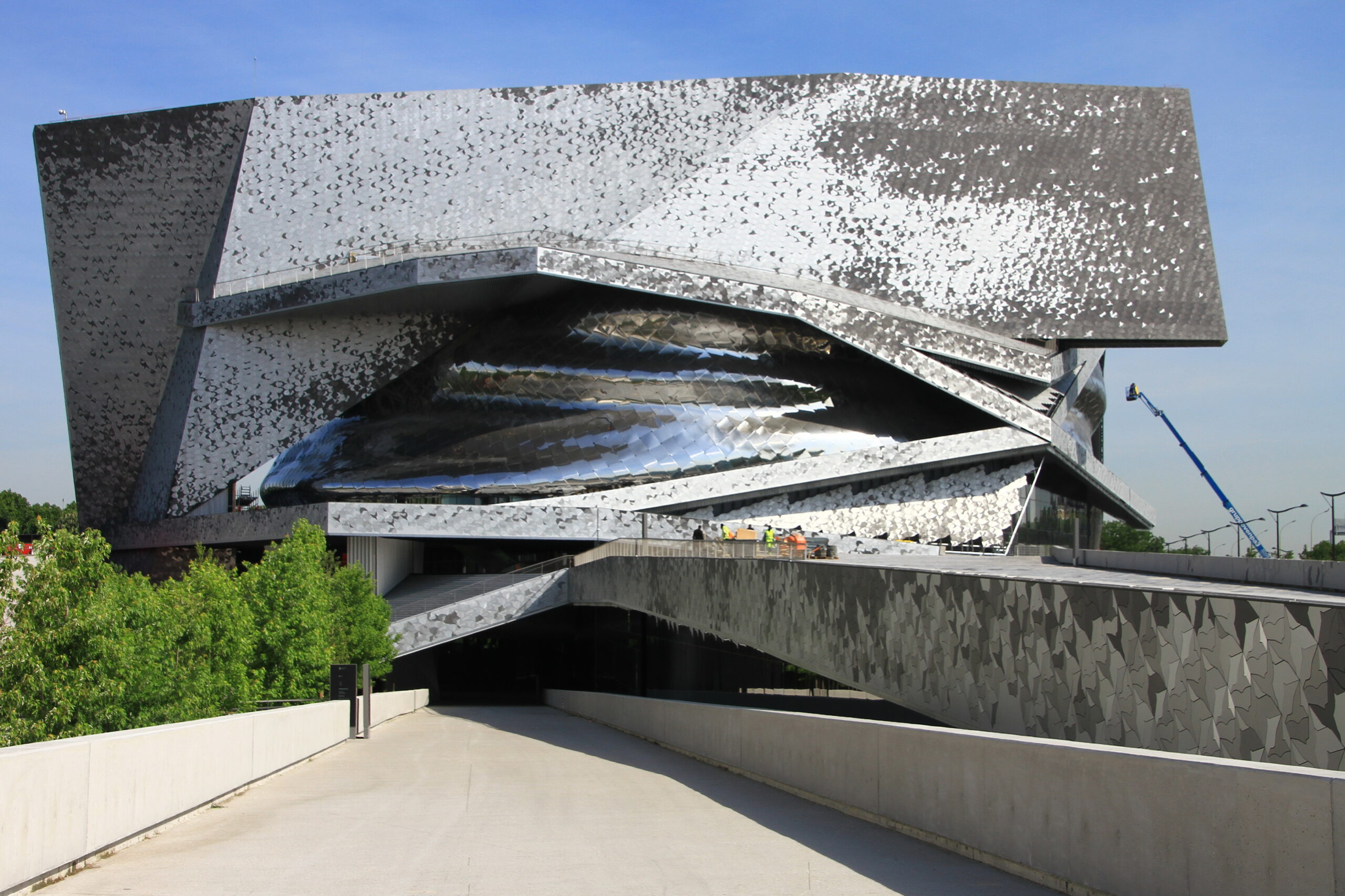

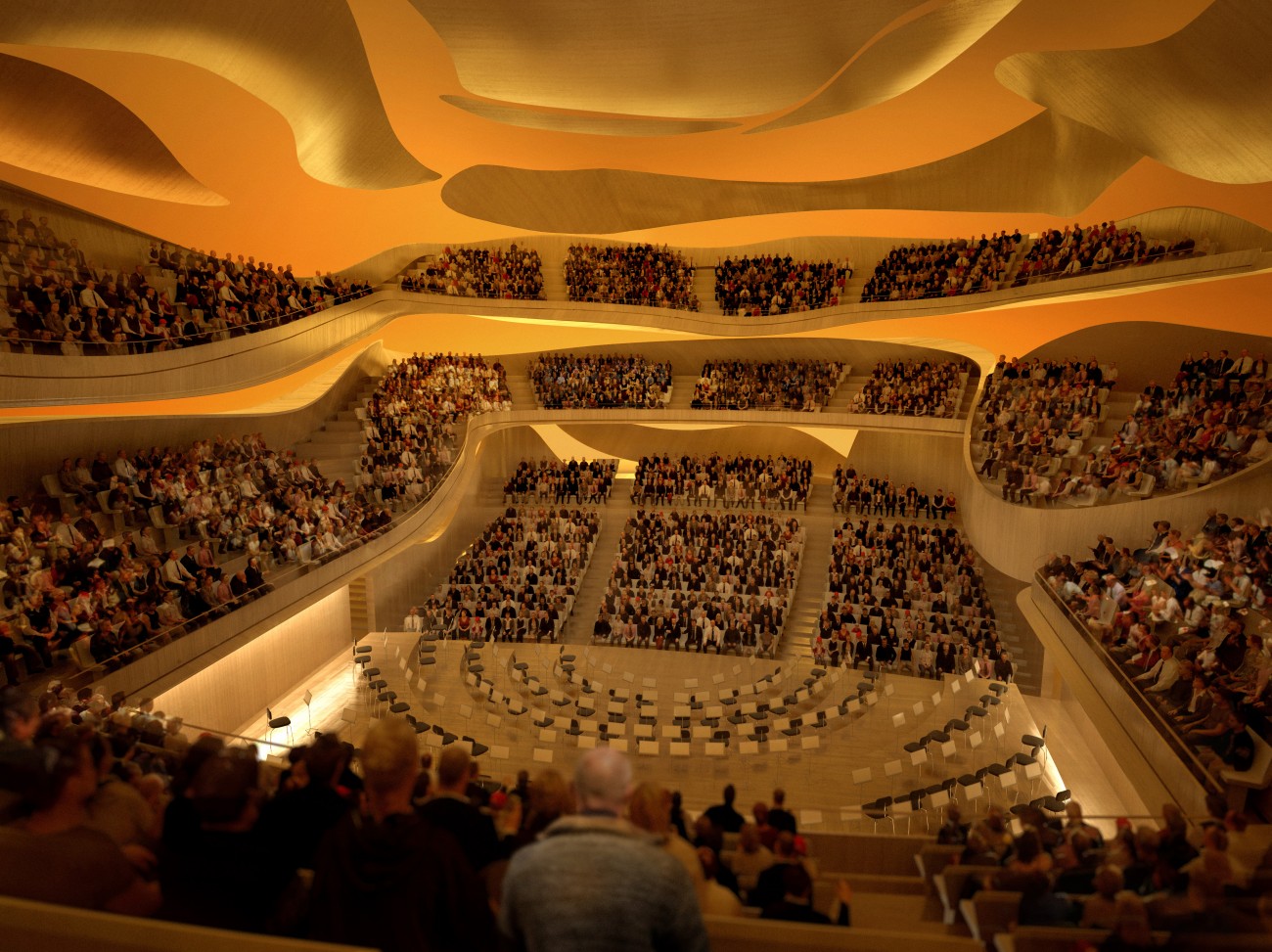

Citée de la Musique | Philharmonie de Paris, France

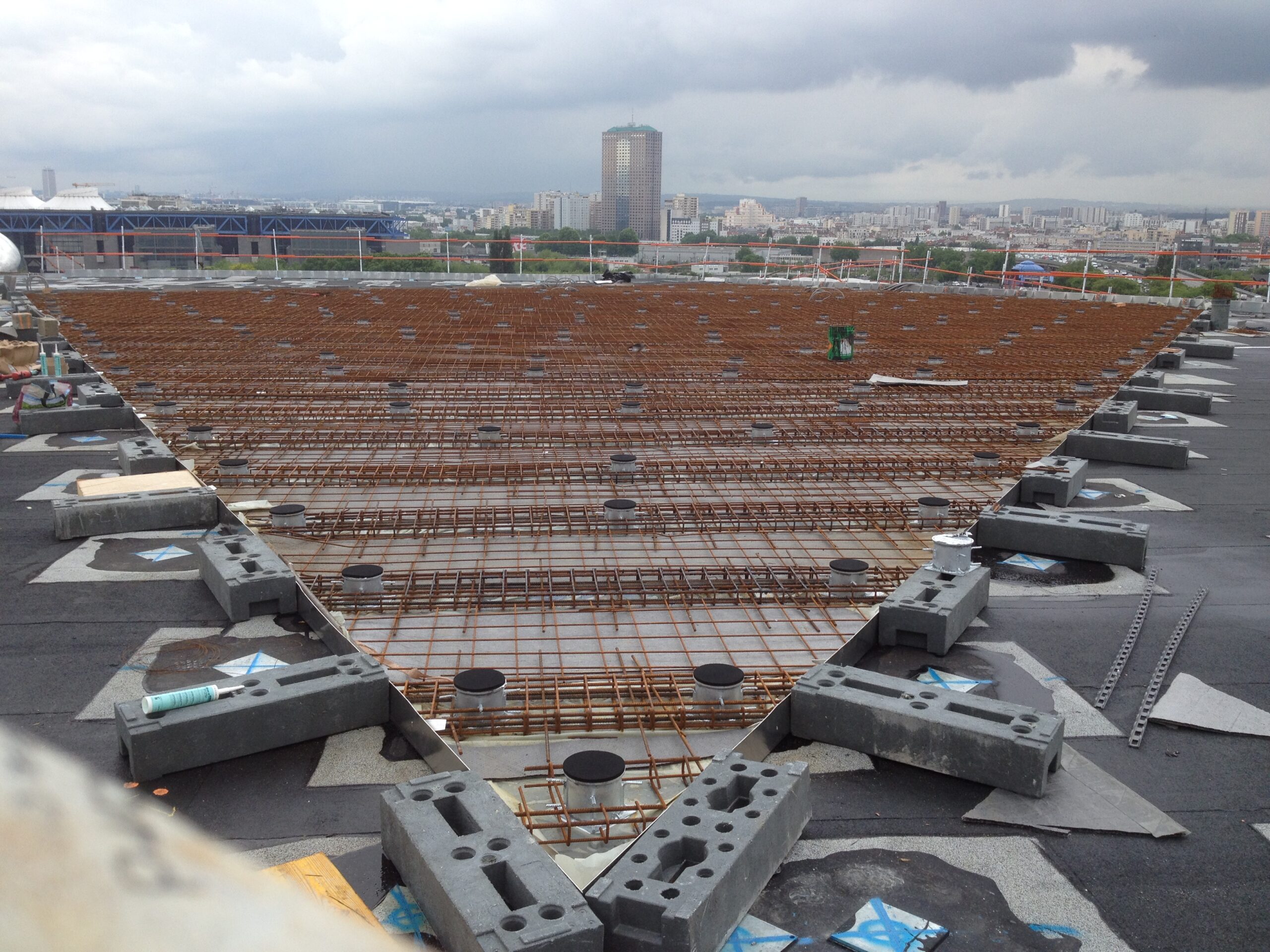

Floating floor isolation with PF jack-up spring elements
Design load: 30,000 kN
Base isolation frequency: 4.8 Hz

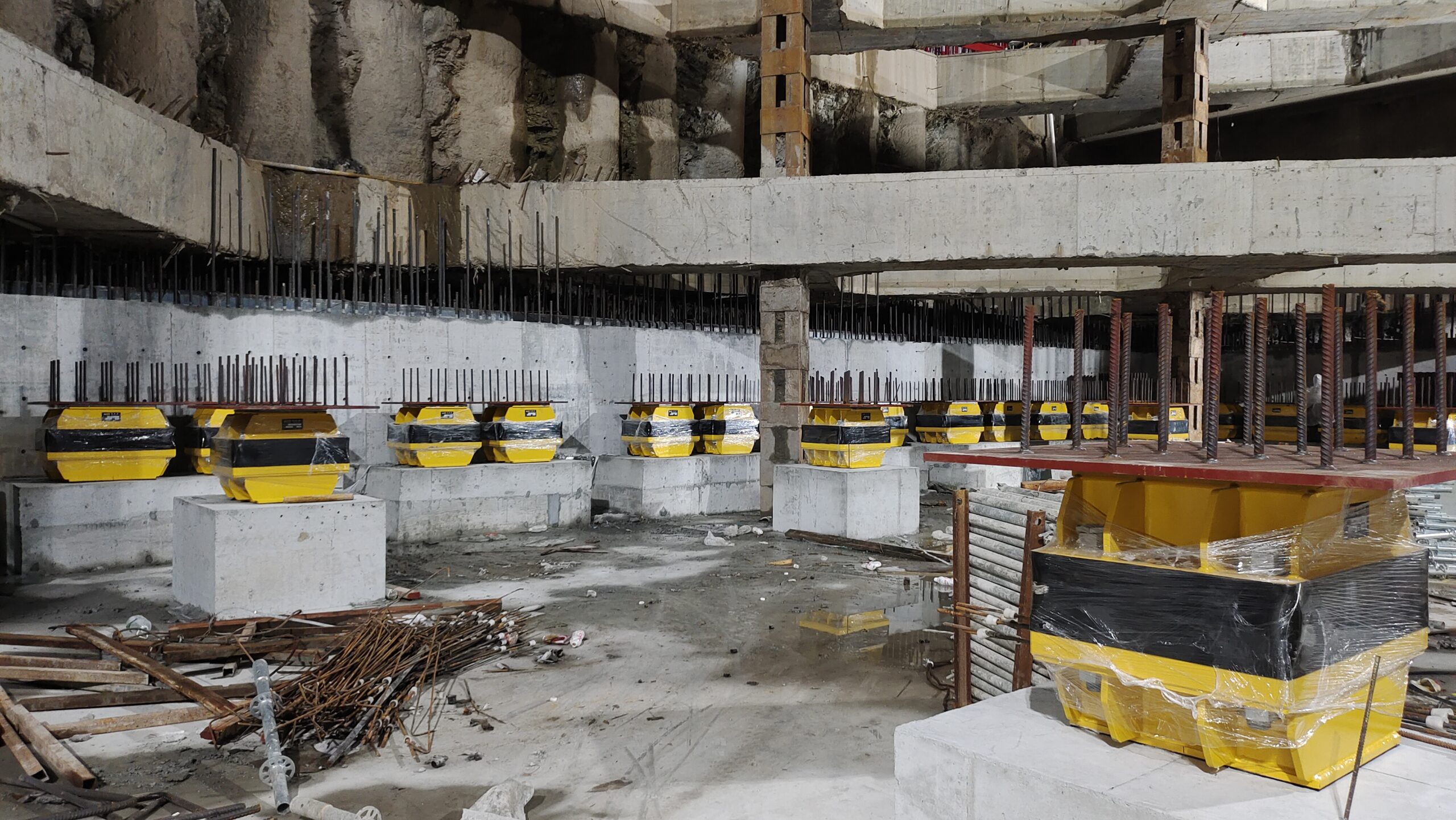

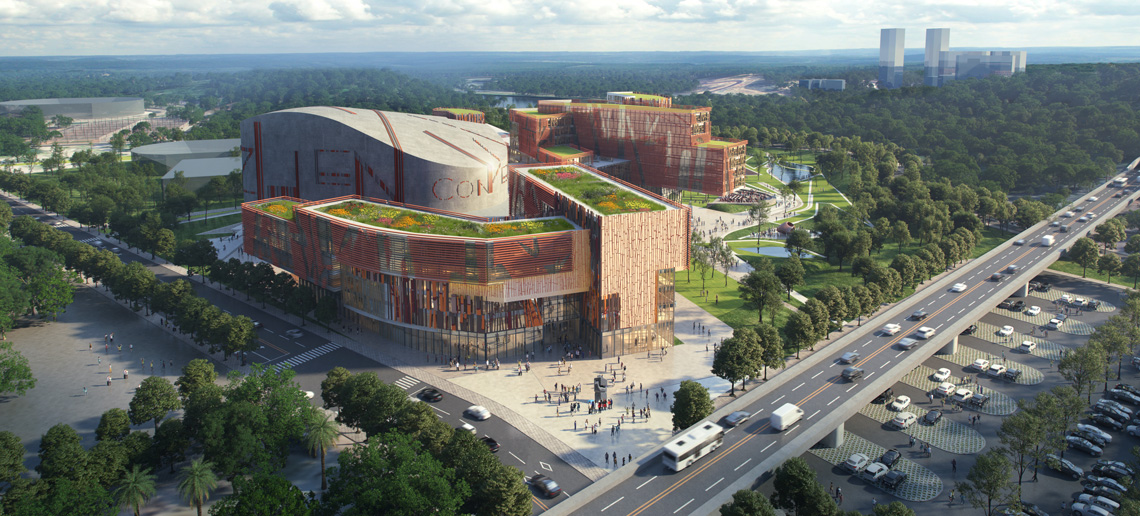

Shenzhen Conservatory of Music
Vibration source: underground metro
Design load: 430,000 kN
Base isolation frequency: 3.5 Hz
GERB is your reliable partner in the full project life cycle
For acoustic consultants, GERB’s solutions offer the assurance of achieving the highest acoustic standards, allowing for finely tuned soundscapes free from disruptive external influences. Architects can seamlessly integrate our spring elements into their designs, preserving the aesthetic and functional integrity of the concert hall while ensuring superior acoustics. Planners and structural engineers benefit from our expertise in integrating vibration control solutions into complex structures, enhancing the overall stability and performance of the building. For real estate investment professionals, the value of properties featuring advanced acoustic isolation solutions is significantly increased, attracting high-profile tenants and events.
At GERB, we are committed to advancing the field of acoustic isolation through innovative vibration control solutions. Our spring elements are not just components but vital elements that enhance the acoustic quality of concert halls, ensuring that every note resonates with clarity and precision. Partner with us to create concert spaces that captivate and inspire, delivering unforgettable auditory experiences.
